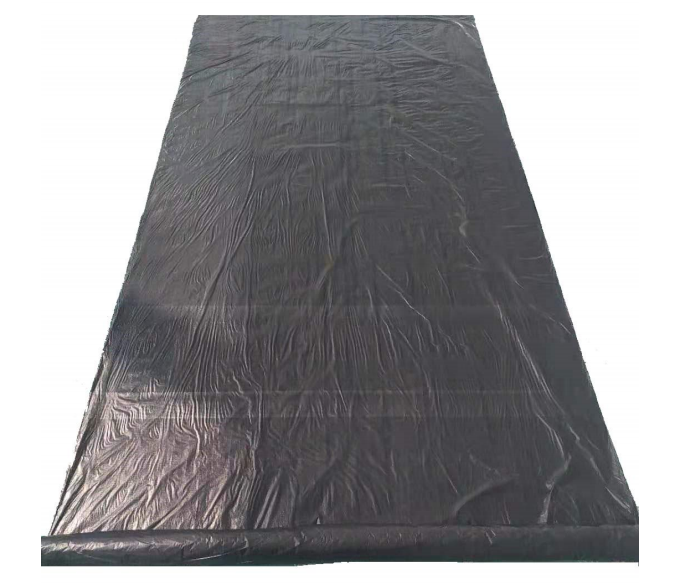

高導電碳納米管薄膜
碳納米管薄膜與巴基紙相比，具有更強的柔韌性、更高的強度、更好的導電性、更大的面積。厚度10~15微米，方阻1上下0.4。總之，碳納米管薄膜是巴基紙的升級版。
|
產品 |
厚度μm |
面密度g/㎡ |
方阻Ω/? |
價格（㎡） |
|
碳納米管薄膜 |
4~6 |
2.9 |
4 |
3500 |
|
碳納米管薄膜 |
6~8 |
3.5 |
3 |
3500 |
|
碳納米管薄膜 |
9~12 |
4.6 |
2.5 |
4000 |
|
碳納米管薄膜 |
10~14 |
5.2 |
2 |
6800 |
|
碳納米管薄膜 |
14~16 |
6.8 |
1.5 |
6800 |
|
碳納米管薄膜 |
16~19 |
8.3 |
1 |
6800 |
|
碳納米管薄膜 |
20~22 |
10.4 |
0.7 |
9000 |
|
碳納米管薄膜 |
22~25 |
15.3 |
0.5 |
9000 |
|
碳納米管薄膜 |
25~27 |
18.6 |
0.4 |
10000 |
|
2號爐薄膜厚度 |
|
方阻/Ω |
克重/g |
測量厚度/um |
平均厚度/um |
|
0.4-0.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.00 |
|
0.7-0.9 |
23 |
21 |
24 |
23 |
22 |
19 |
23 |
24 |
21 |
22 |
23 |
21 |
20 |
21 |
20 |
22 |
21.73 |
|
1-1.4 |
13 |
12 |
14 |
16 |
14 |
13 |
11 |
12 |
13 |
14 |
14 |
11 |
13 |
13 |
12 |
13 |
13.00 |
|
1.5-1.8 |
11 |
10 |
10 |
11 |
10 |
10 |
10 |
10 |
10 |
10 |
12 |
10 |
10 |
9 |
10 |
10 |
10.13 |
|
1.9-2.2 |
9 |
7 |
7 |
10 |
7 |
7 |
8 |
6 |
6 |
7 |
7 |
6 |
6 |
6 |
7 |
8 |
7.00 |
|
2.3-2.7 |
8 |
6 |
6 |
5 |
6 |
6 |
5 |
5 |
5 |
7 |
6 |
7 |
7 |
6 |
6 |
6 |
5.93 |
|
2.8-3 |
7 |
7 |
6 |
5 |
6 |
6 |
5 |
5 |
5 |
7 |
5 |
7 |
7 |
6 |
5 |
6 |
5.87 |
|
3.1-3.5 |
6 |
4 |
6 |
5 |
6 |
5 |
5 |
5 |
6 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5.13 |
|
3.6-4 |
5 |
3 |
5 |
5 |
4 |
5 |
5 |
4 |
4 |
4 |
5 |
5 |
5 |
5 |
5 |
4 |
4.53 |
|
3號爐薄膜厚度 |
|
方阻/Ω |
克重/g |
測量厚度/um |
平均厚度/um |
|
0.4-0.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.00 |
|
0.7-0.9 |
40 |
24 |
23 |
24 |
24 |
23 |
21 |
20 |
22 |
20 |
19 |
22 |
23 |
23 |
21 |
22 |
22.07 |
|
1-1.4 |
20 |
13 |
13 |
13 |
14 |
13 |
10 |
11 |
11 |
11 |
10 |
10 |
11 |
12 |
11 |
12 |
11.67 |
|
1.5-1.8 |
18 |
10 |
10 |
11 |
11 |
11 |
9 |
8 |
9 |
8 |
8 |
8 |
7 |
8 |
9 |
9 |
9.07 |
|
1.9-2.2 |
14 |
5 |
5 |
4 |
4 |
5 |
4 |
4 |
5 |
4 |
4 |
4 |
4 |
4 |
5 |
3 |
4.27 |
|
2.3-2.7 |
12 |
4 |
4 |
4 |
3 |
3 |
4 |
4 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3.33 |
|
2.8-3 |
11 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
2 |
4 |
3 |
3 |
3 |
3 |
3.00 |
|
3.1-3.5 |
10 |
3 |
3 |
3 |
2 |
3 |
3 |
3 |
3 |
2 |
2 |
3 |
3 |
3 |
3 |
2 |
2.73 |
|
3.6-4 |
8 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
說明：1.使用千分尺測量薄膜厚度，因為扭動千分尺的力不好控制測量厚度只做為參考。 2.每種方阻測量3張薄膜，每張膜測量5個點。 |
|
高導電碳納米管薄膜 |
JCNTF-20C |
|
方塊電阻 |
1~1.5歐姆/方塊 |
|
導電性 |
3~8x103S/m |
|
強度 |
-120MPa |
JCNTF-20C最小量10*10cm，價格400元/片
